Select the type of closed loop geothermal system that you are looking for. Below are three different types of this kind of system with brief explanations as to how they work.

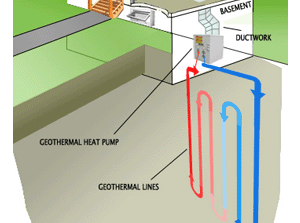

Vertical closed loops are preferred in many situations. For example, most large commercial buildings and schools use vertical loops because the land area required for horizontal loops would be prohibitive. Vertical loops are also used where the soil is too shallow for trenching. Vertical loops also minimize the disturbance to existing landscaping.

For vertical closed loop systems, a U-tube (more rarely, two U-tubes) is installed in a well drilled 100 to 400 feet deep. Because conditions in the ground may vary greatly, loop lengths can range from 130 to 300 feet per ton of heat exchange. Multiple drill holes are required for most installations, where the pipes are generally joined in parallel or series-parallel configurations.

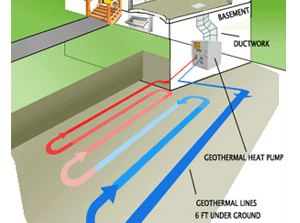

Horizontal closed loop installations are generally most cost-effective for small installations, particularly for new construction where sufficient land area is available. These installations involve burying pipe in trenches dug with back-hoes or chain trenchers. Up to six pipes, usually in parallel connections, are buried in each trench, with minimum separations of a foot between pipes and ten to fifteen feet between trenches.

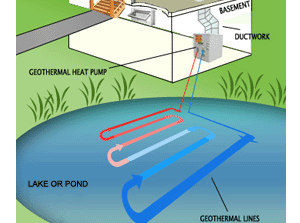

Pond closed loops are a special kind of closed loop system. Where there is a pond or stream that is deep enough and with enough flow, closed loop coils can be placed on the pond bottom. Fluid is pumped just as for a conventional closed loop ground system where conditions are suitable, the economics are very attractive, and no aquatic system impacts have been shown.
